Radiant Protective Performance Tester (RPP)
Model :T421
Responsing Time:1 Working Days
Shipping Port:Shanghai
Payment Terms:T/T, L/C
Overview
Radiant-heat protective performance(RPP) tester is test device to determine the radiant-heat protective performance of single or multi-layer textiles or other materials intended for heat protective clothes or assembly against radiant heat. The tester is a limited suitable tool for evaluating the potential of textiles for second degree skin burns.
Standards
BS EN ISO 6942, EN 366, EN 407, ISO 11612, ASTM F1939, ASTM F2702, NFPA 1971, NFPA 2112, GB 38543, GB/T 38306
Feature
- Industrial personal computer with analysis software is suitable for severe testing conditions.
- Automatic calculation for heat transmission factor and radiant heat transfer index.

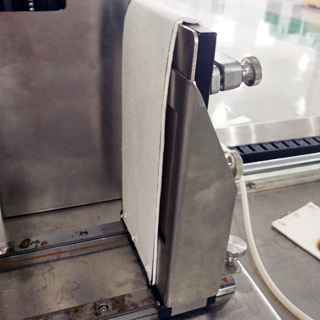

- Sample holder with force applied kit is easy to operate.
- Single pump for shutter movement and cooling water loop.
Specification
| Item | Detail |
| Radiant source | Φ8mm SiC heating rod×6 (Quartz infrared lamps for ASTM F2702) |
| Heat flux measurement | Calorimeter mounting block |
| Heat flux range | 10-80kW/m² |
| Thermocouple | 20-1600℃ |
| Temperature controller | PID controller of 20-1200℃ |
| Power supply | 220V 50Hz |
| Dimension | 540mm×720mm×600mm 21.26inch×28.35inch×23.62inch |
| Net weight | 65kg 143.3lb |
Configuration
| No. | Product |
| 2042101 | Radiant-heat protective performance tester (SiC rods radiant source) |
| 2042102 | Radiant-heat protective performance tester (Quartz infrared lamps radiant source) |
| 2042103 | Air pump control system |
| 2042104 | SiC rod kit |
| 2042105 | Quartz infrared lamp kit |
| 2042106 | Standard calorimeter |
