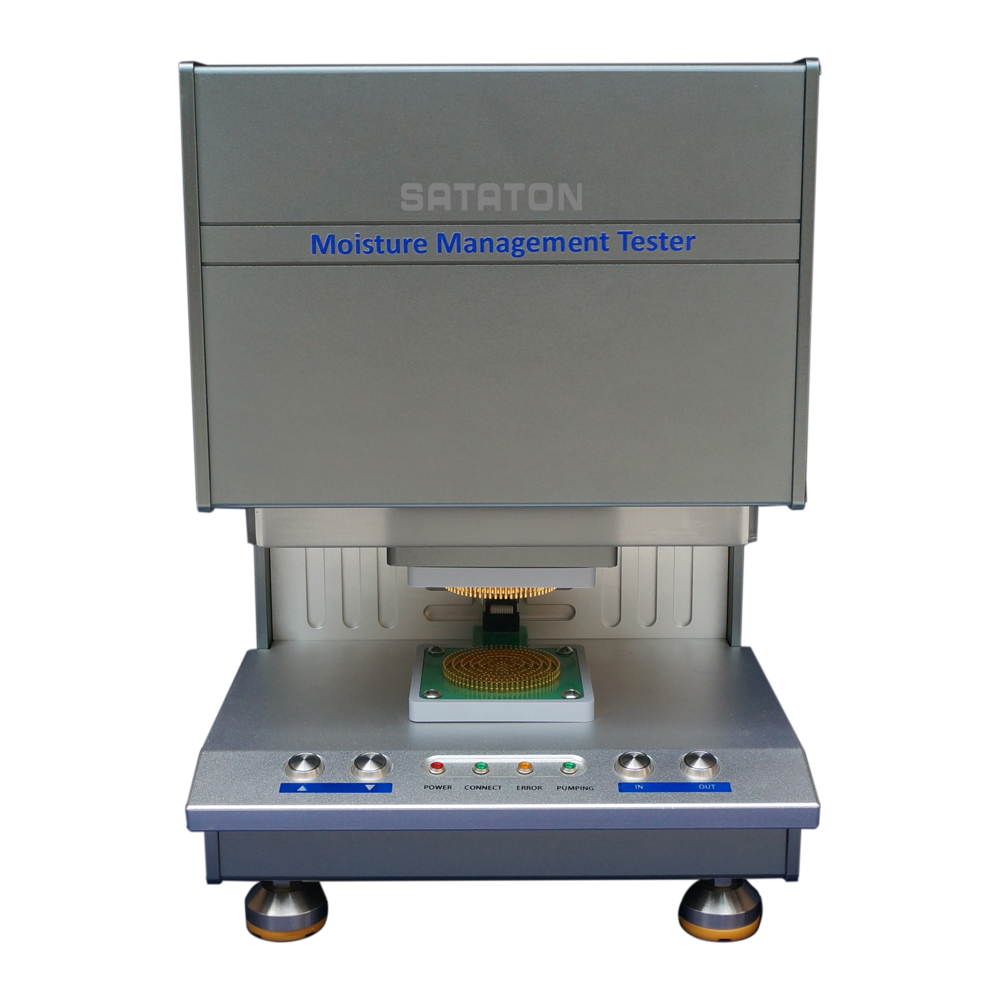

Moisture Management Tester
Overview
Moisture management tester is the tool for the measurement, evaluation and classification of liquid moisture management properties of textile fabrics. By testing the changes in electrical resistance of textiles placed between two horizontal electrical sensors with concentric pins, the tester can calculate fabric liquid moisture content changes that quantify dynamic liquid moisture transport behaviors in multiple directions of the specimen. The software of tester can grade the liquid moisture management properties of a fabric by using the predetermined indices. The tester is used to determine the liquid moisture management properties of knitted, woven and nonwoven textiles, and also can be used to test the one-way transport capability of diapers.
Standards
AATCC 195 GB/T 21655.2 SN 1689.1
Feature
- Single one-click testing mode.
- Built-in pressure calculating tool provides exact loading weights on tested specimen.
- Automatic control system can start testing, stopping and calculating all the indices.
- Evaluation, measurement, grading and classification software with user friendly interface is easy to use.
Specification
| Item | Detail |
| Upper sensor | Φ58.4mm (Φ0.54mm pin) |
| Lower sensor | Φ58.4mm (Φ1.2mm pin) |
| Liquid adding rate | 0.2g/20s |
| Loading pressure | 4.65N |
| Testing time | 120s (Standard time) |
| Parameter | Absorption rate, one-way transport capability, maximum wetted radius, overall moisture management capability, spreading speed, wetting time |
| Power supply | 220V 50Hz |
| Dimension | 350mm×450mm×570mm 13.78inch×17.72inch×22.44inch |
| Net weight | 15kg 33.07lb |
Configuration
| No. | Product |
| 2037601 | Moisture management tester |
| 2037602 | Computer with software |
| 2037603 | Conductivity meter |
