Metallized Materials Mechanical Pre-treatment Device

Model :T417

Responsing Time:1 Working Days

Shipping Port:Shanghai

Payment Terms:T/T, L/C

Overview

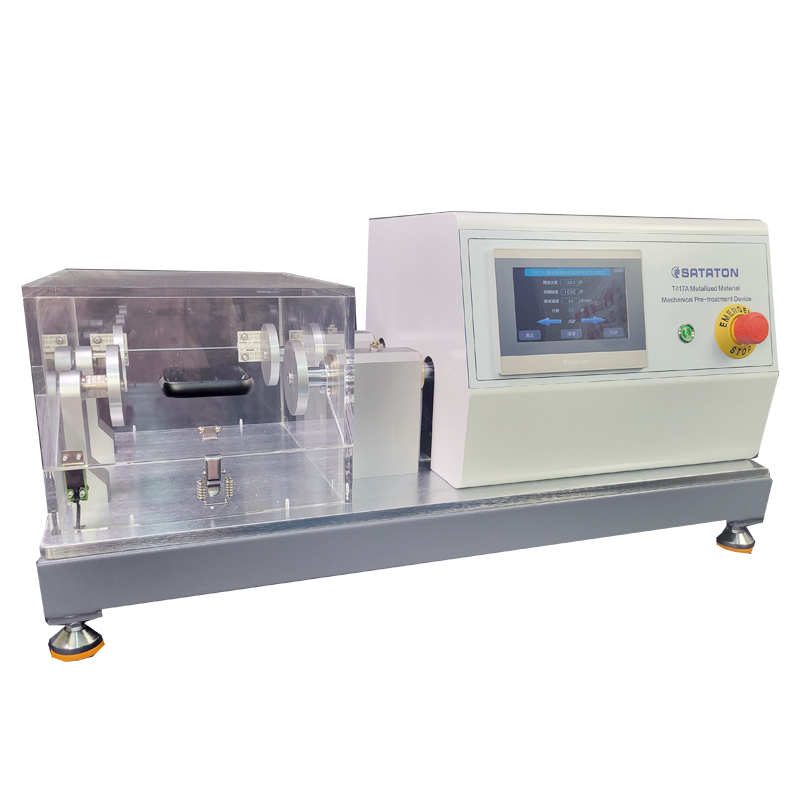

Mechanical pre-treatment device is designed to simulate the wearing effect of repeat use of metallizaed coatings heat&flame protective clothing. The effectiveness of metallized coatings in reflecting radiant heat can be drastically reduced by the effects of wear. Specimens are mechanically pre-treated using this device that simultaneously twists and compresses the sepcimen.

Standard

ISO 11612 Annex A

Features

Two test positions;
Servomotor provides accuracte rotation angle and stroke.
Potective cover for user safety.
Integrated touchscreen with easy to use controls.

Specification

Item	Detail
Test positions	2
Discs	2pcs, Φ(90±1)mm, (12±0.5)mm thick
Flex frequency	(40±4) cycles/min
Rotation angle	(450±10)°
Initial disc separation	(190±1)mm
Horizontal stroke	(90±5)mm/65mm
Specimen size	280mm×280mm
Counter	0-9999
Power supply	AC 220V, 50/60HZ
Dimension	450mm×340mm×415mm
Weight	50kg
