Impact Protection Tester

Model :T561

Responsing Time:1 Working Days

Shipping Port:Shanghai

Payment Terms:T/T, L/C

Overview

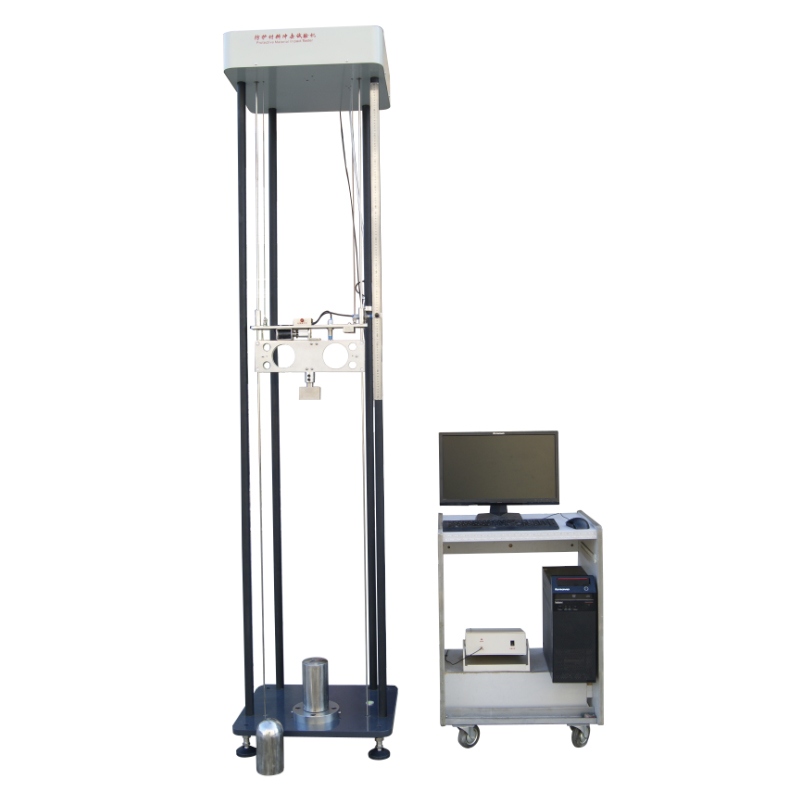

Gloves impact tester is to determine protection against injury by impacts with motorcycle accidents or working accidents. It is suitable for testing motorcycle riders’ impact protectors and personal protetive equippment gloves. It aims to provide information on protection against impacts against edges and reduce the incidence ans severity of injuries during the accidents.
By releaseing certain falling mass drop striker, the test machine will test the record the force change through a high speed force transducer.

Standards

BS EN 1621-1, BS EN 1621-2, EN 388, EN 13594, ISO 20344.5.17

Features

Piecoceramics force transducer with high resolution, high response speed.
Automatic test mode. Auto force recording and calculating test results.
Support print test report. Easy to understand, operate and maintain.

Specification

Item	Detail
Control mode	Touchscreen+PC Software
Range	0-100kN
Force sensor	Piezoelectric ceramic mechanical sensor
Sampling Frequency	＞40kHz
Striker&Anvil	One set for GB 24541/EN 388/EN 13594 One set for ANSI/IESA 138 One set for EN 1621-1&4 One set for EN 1621-2 One set for EN 1621-3 One set for ISO 20344-2021 section 5.22 One set for EN 14404-1 2024 section 4.6 One set for EN 13634 2017 section 6.2
Impact mode	Guide fall
Lifting apparatus	Motor lifting
Power supply	220 AC 50Hz
Dimension	650mm×770mm×2200mm
Net weight	180kg

Configuration

No.	Product
2056101	Impact Protection Tester
2056102	EN 388/EN 13594/GB 24541 Drop striker&Anil
2056103	EN 1621-1 Drop striker&Anil
2056104	EN 1621-2 Drop striker&Anil
